1J1002
3265B: 25A / 3265BQ: 25A
1J1002 CONVERTER 4 TO 2 BNC
Overview
Overview
Overview

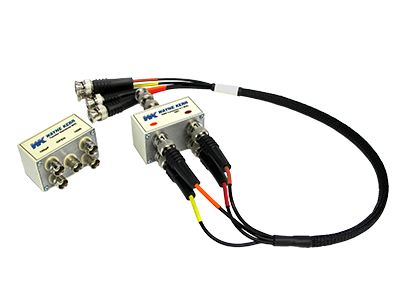

The 1J1002 4 to 1 BNC Converter is used to connect a Wayne Kerr 6500 analyzer to the Device Under Test which is terminated in two BNC connectors
Technical Specification
Technical Specification
- Frequency: 20 Hz to 120 MHz
- Connection to Analyzer: 4-BNC 1 metre cable
- Connection to DUT: Two 8cm coaxial cables, each terminated with a male BNC
- Transfer Standards: 5-654-7014 Transfer Standard Box (supplied as standard)
- Containing Open, Short, 10 pF, 100 pF and 100 Ω standards
Compatibilities
Compatibilities
- Wayne Kerr 6500 Series
